Supply> Supply of automatic steel bar straightening machine, automatic steel straightening machine Model is Luoyang Hongte Machinery Equipment Co., Ltd. The main business, our company was originally China South Locomotive & Group Luoyang locomotive factory repair machine factory, in 2004 according to the relevant provisions of the state restructuring for the Luoyang Hong special machinery and equipment Limited. The company mainly for the steel straightening cutting machine manufacturing sales, machinery and equipment overhaul, non-standard equipment manufacturing. The company is strong in technology, well-equipped, high technical staff quality. The company developed high-efficiency steel straightening cutting machine has reached the advanced level of similar foreign products, high efficiency, good quality, by domestic and foreign steel dealers, steel welded wire mesh production enterprises, steel distribution centers and other users of praise. Products have been exported to Laos Myanmar Southeast Asia, Taiwan and Europe. Welcome friends from all walks of life patrons, visit the guide.

Steel wire straightening machine / steel straightening machine model details
Brand: Hunt
Straightening Machine Model: GT Series
Product alias: steel straightening machine
Product use: steel straightening and cutting cut
Reinforcement Straightening Machine Type: Reinforcement Machine

The Function and Characteristics of the Straightening Machine / Reinforcement Machine
1. Cut the length of the steel without error,
2. double-headed pull,
3. The last meter of steel finished pull up,
4. Construction tungsten steel mold,
5. Product wire with the end of the ball, out of the steel will not hurt the surface.

The working principle of the steel straightening machine / steel straightening machine model
First by the motor through the belt drive speed, so that high-speed rotation of the barrel, through the straightening of the steel bar is straightened by the straightening mold to remove the steel surface of the rust;
By the motor through another pair of slowdown belt drive and gear box, on the one hand drive two transmission pressure roller, traction steel forward movement, on the other hand drive the crank wheel, so that the hammer up and down movement.
When the steel bar to adjust to the length of a predetermined length, hammer hammer on the knife, the steel cut off, cut off the steel into the receiving frame, due to the role of spring, knife back to the original position to complete a cycle.

Operation Rules for Straightening Machine / Reinforcement Straightening Machine Model
1, the equipment must be responsible for the person, and holders of posts.
2, the operator is not allowed to leave the machine too far, on the plate, wearing silk, the first cut off when the need to stop.
3, straightening the process of steel, when the steel out of the tray guide slot, the top fixed body and the chaos or steel bar off, should promptly press the limit switch, stop cutting steel, to be adjusted after the prospective use The
4, each steel bar to adjust to the end or straightening short steel bars, should be hand-held pipe escort guide to the guide and straighten the drum, so as to avoid the free swing when the accident occurred.
5, straighten the mold is not fixed, the protective cover is not covered before, are not allowed to penetrate the steel bar, to prevent the machine after the start, straighten the mold flew out of injury.
6, machinery in the course of operation, shall not adjust the drum, with gloves is strictly prohibited operation, and is strictly prohibited in the process of mechanical maintenance operations.
7, has been straightened, cut off the steel, should be according to specifications, the number of roots divided into small bundles neatly, not allowed to chaos, to prevent the composition of steel, performance caused by different quality accidents, operations must be cut off the power.
8, strict implementation of the "cross operating principles" to ensure that the machinery is in good working condition.

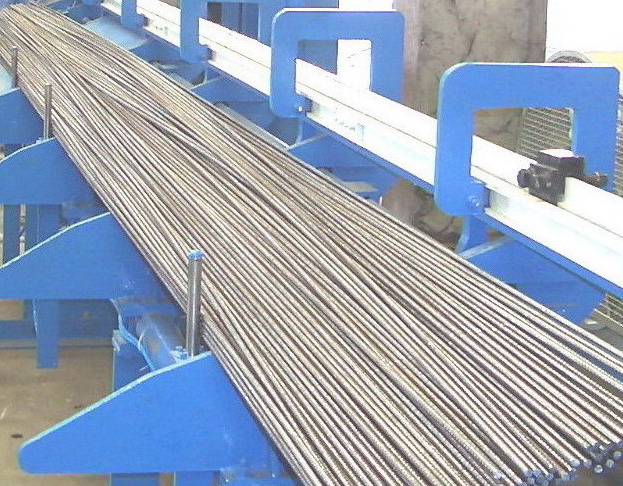

Steel straightening machine / steel straightening machine model of the product display
